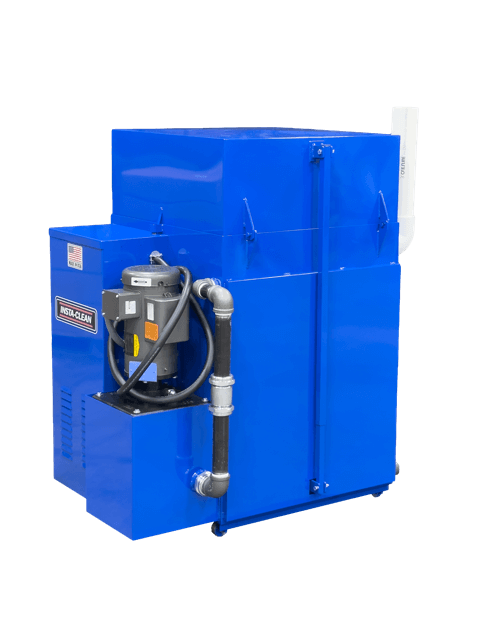

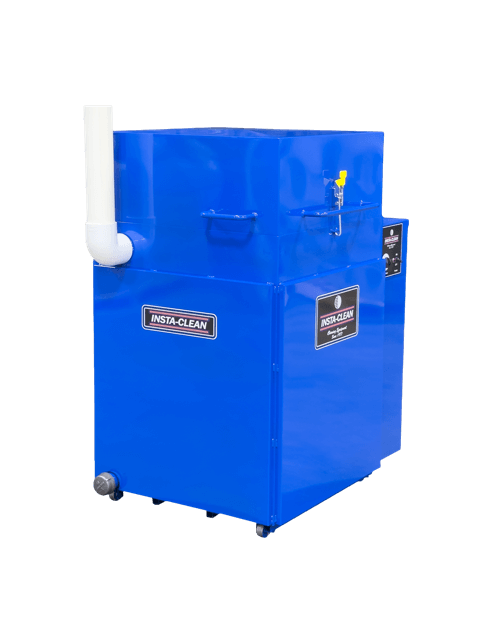

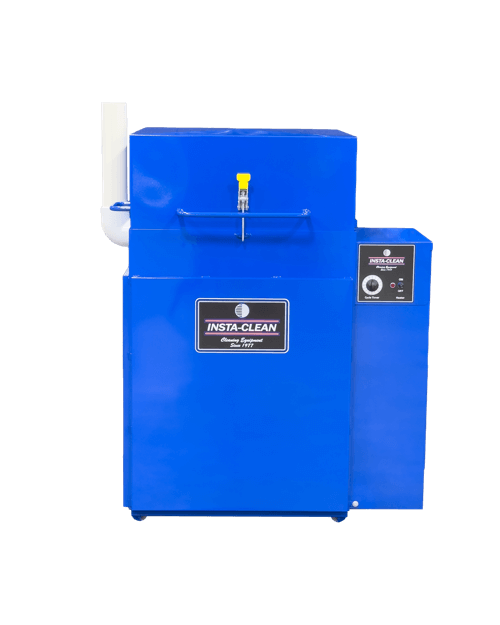

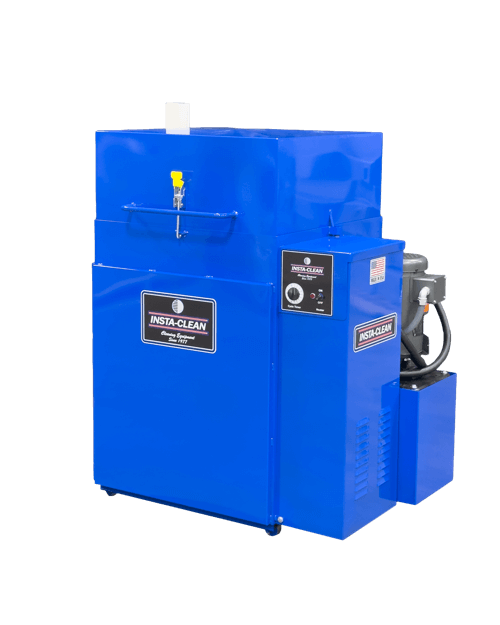

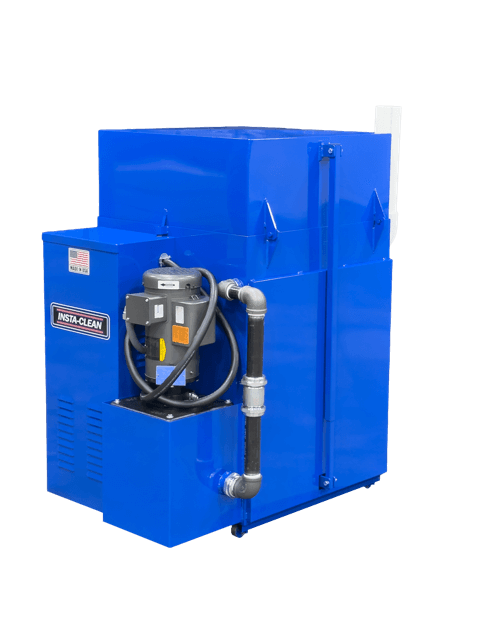

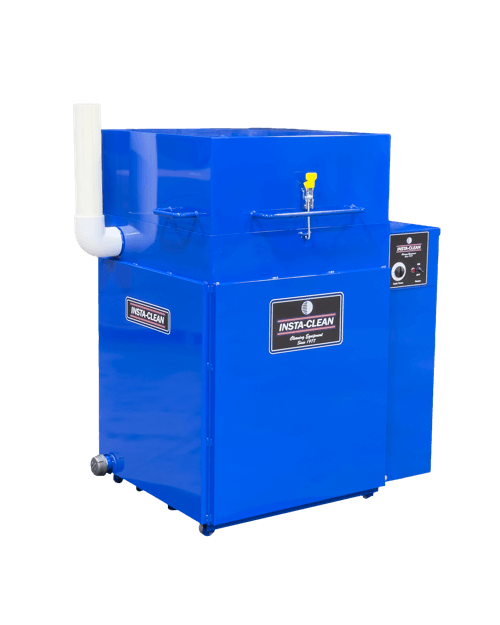

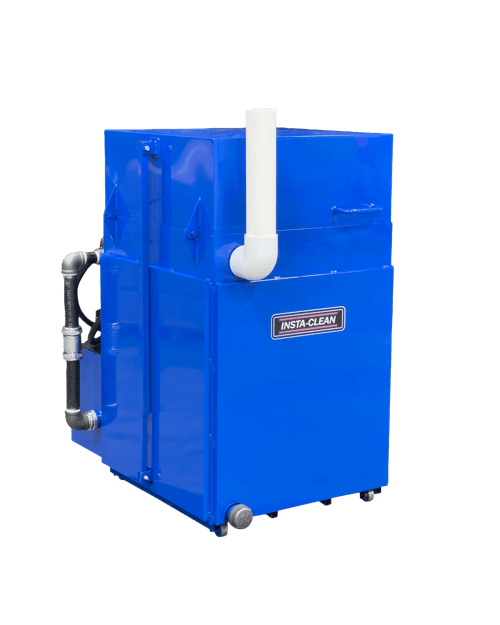

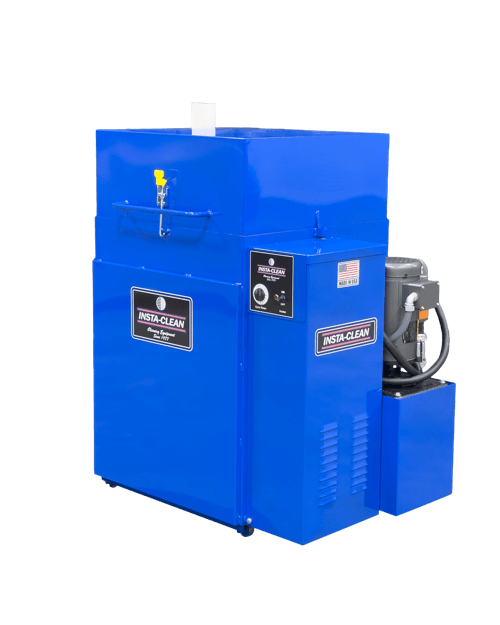

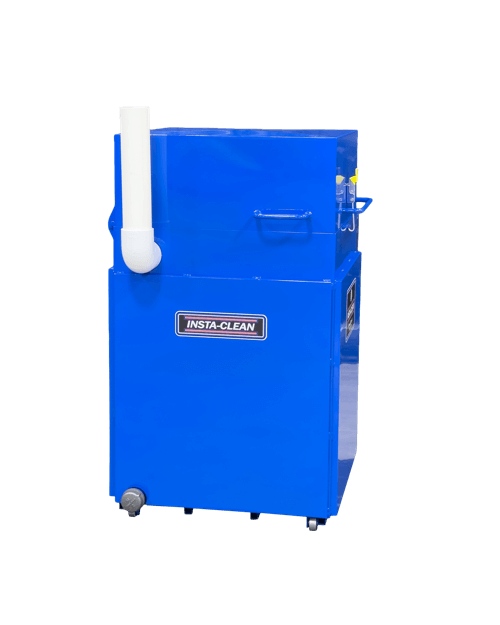

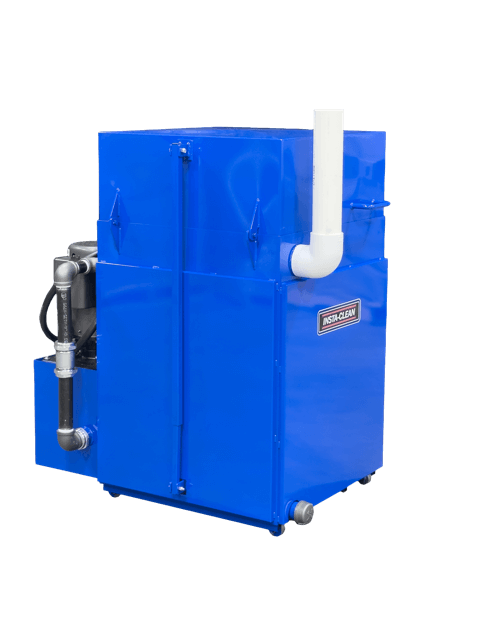

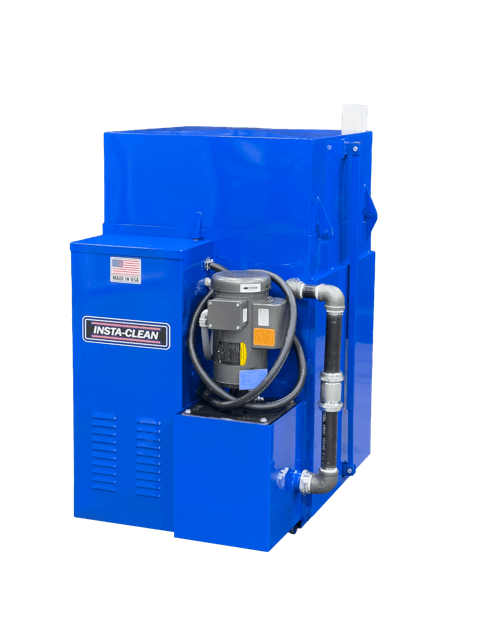

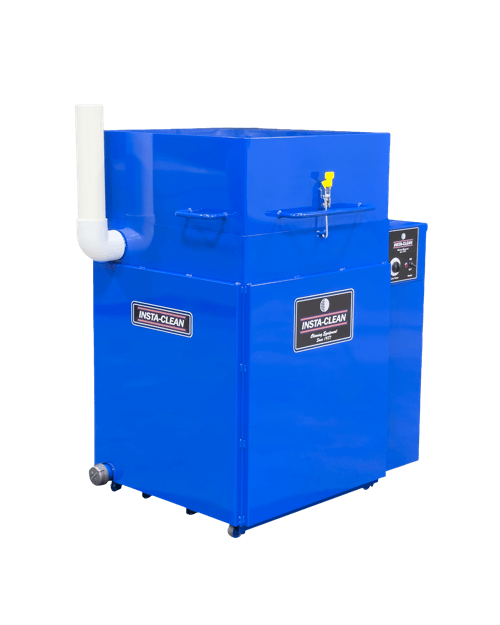

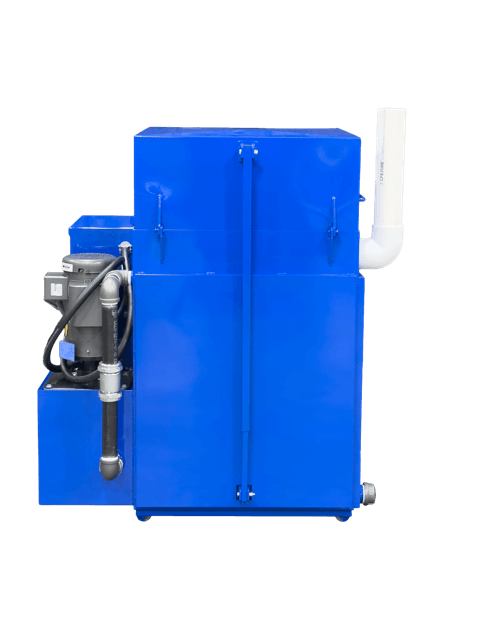

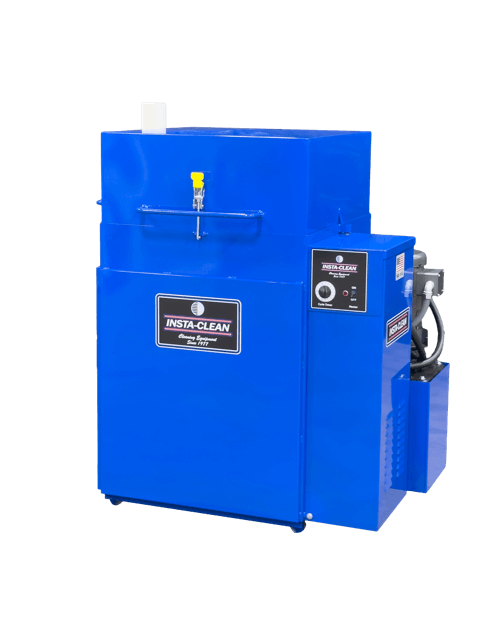

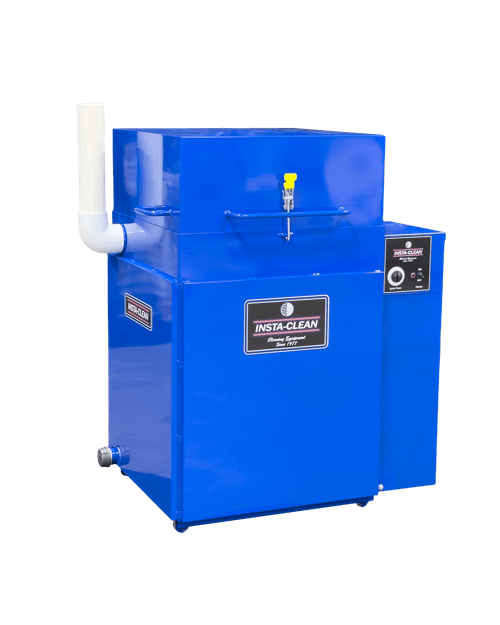

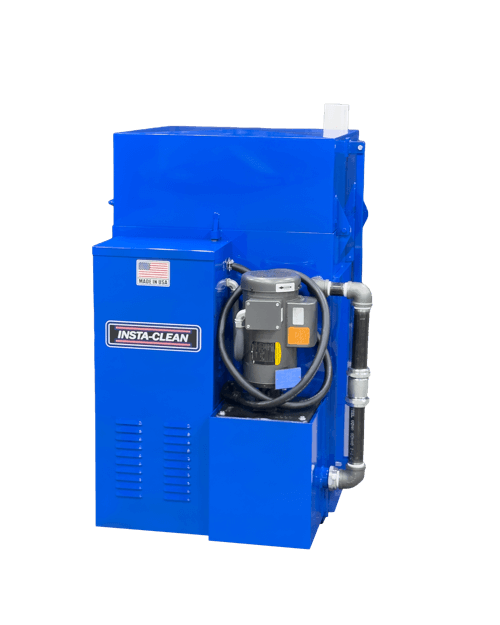

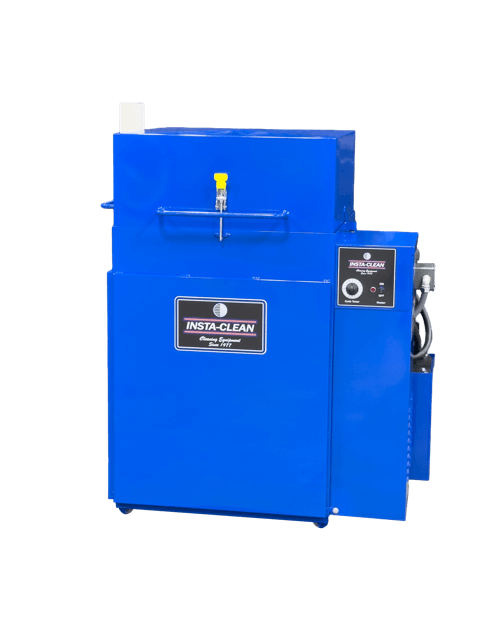

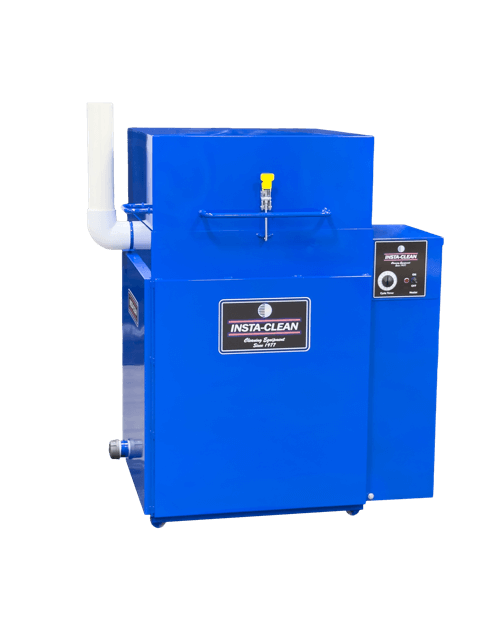

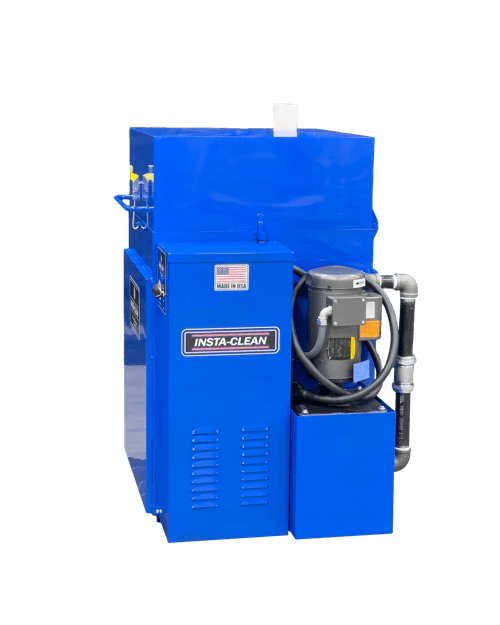

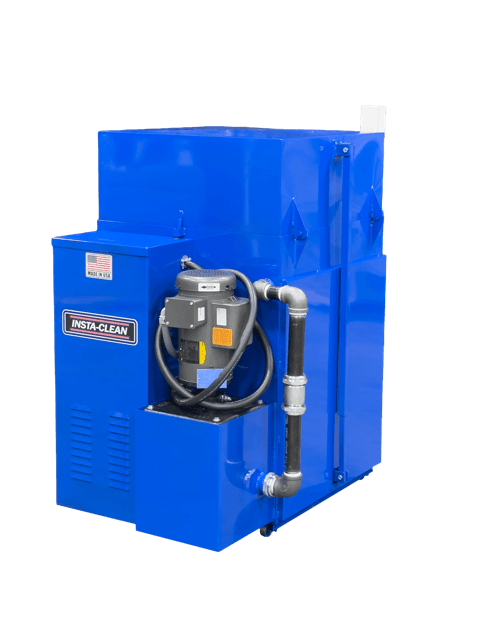

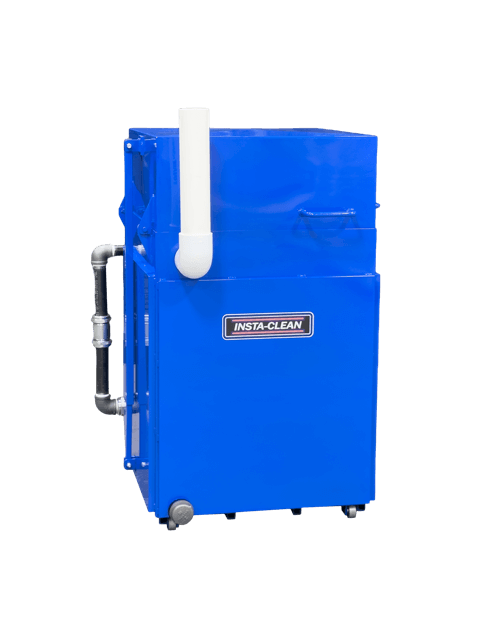

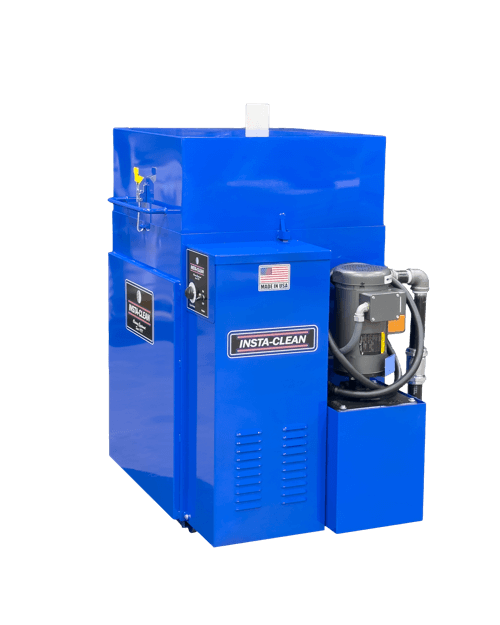

IC-4
The Insta-Clean IC-4 delivers high-pressure, hot-water spray cleaning in a portable cabinet designed for shops that need serious performance without sacrificing floor space. Built to handle engine blocks, transmissions, and heavily soiled components, the IC-4 removes oil, grease, and grime in minutes while protecting parts from rust.
IC-4 PRODUCT OVERVIEW

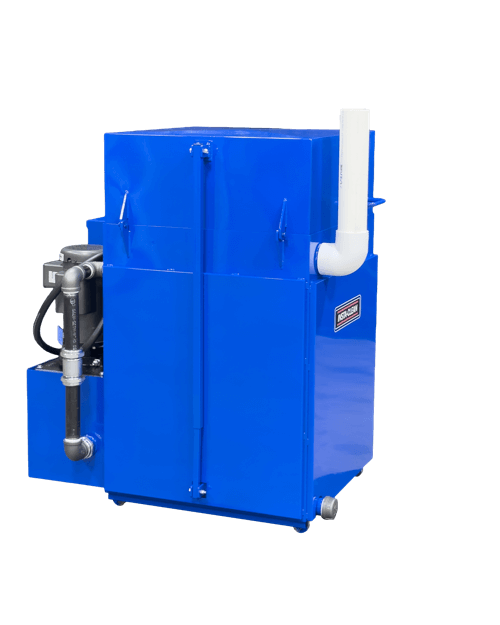

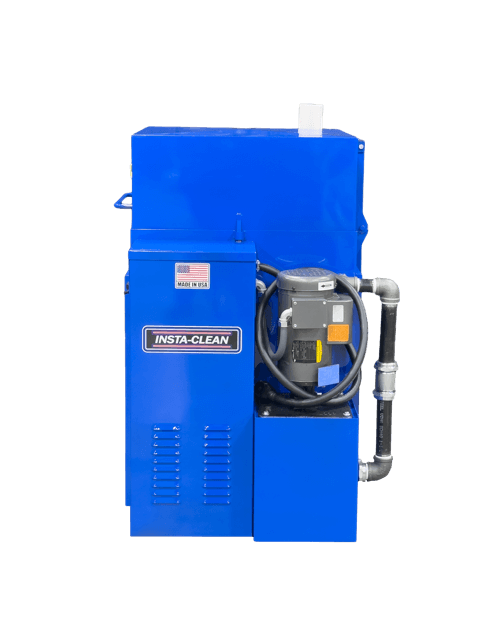

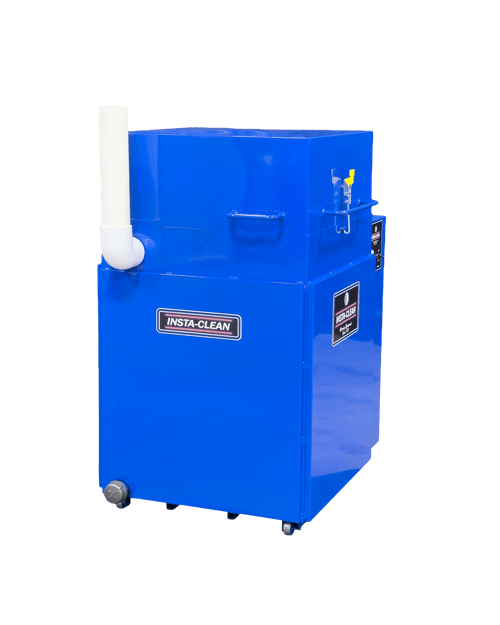

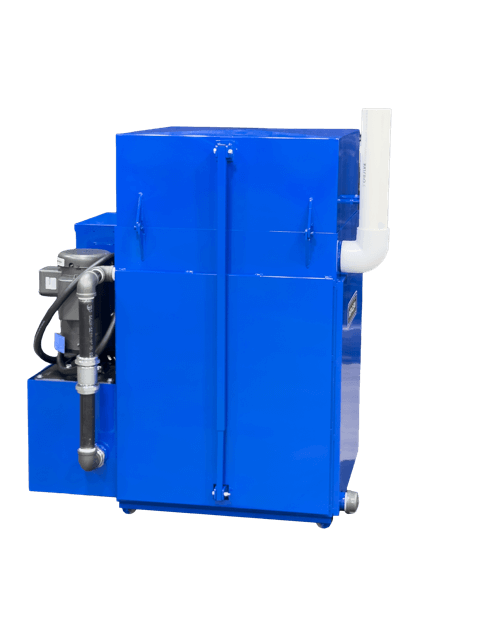

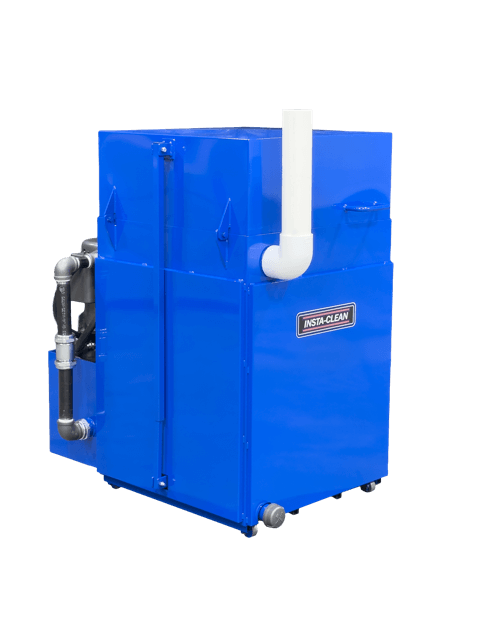

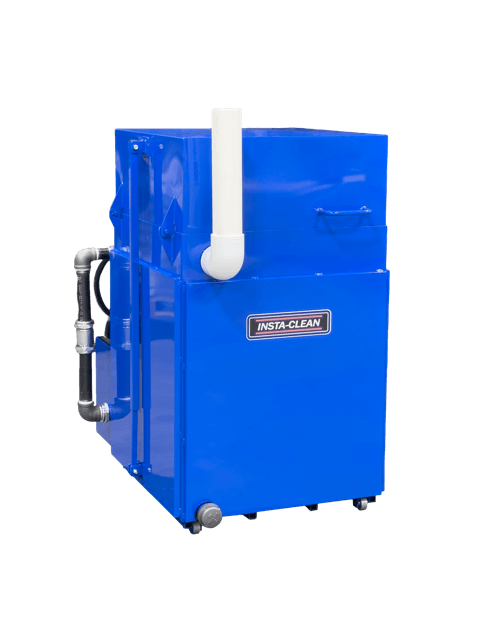

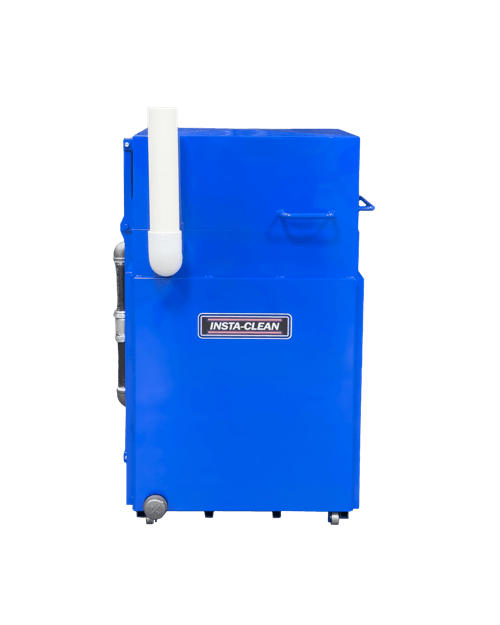

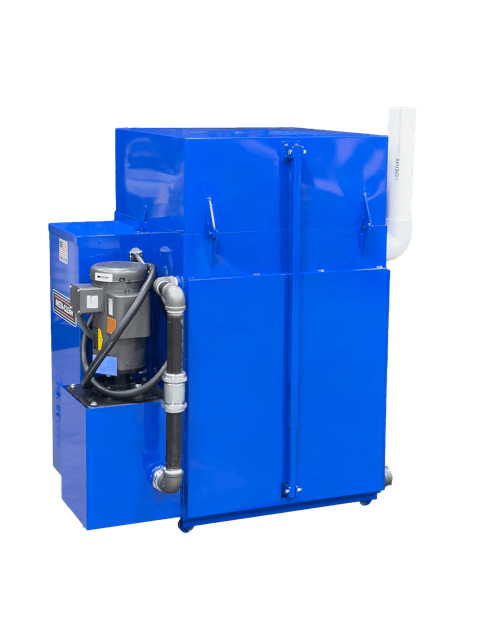

Carbon steel top-load parts washer. Designed for the automotive repair industry to clean oily, greasy, and heavily soiled parts. This unit is available with the optional built-on oil skimmer. Quality 12-gauge construction, with a durable polyurethane coating and thermal insulation, is standard.
IC-4 WALKTHROUGH
This walkthrough video offers a general overview of the IC-4 parts washer. It helps operators become familiar with the machine and provides helpful context before using the equipment in routine cleaning tasks.
PRODUCT TECH SPECS
12 GAUGE CABINET CONSTRUCTION
CARBON STEEL
THERMAL INSULATION
INCLUDED
PUMP HP
3 HP (SEAL-LESS)
OIL SKIMMER
OPTIONAL
HEATER
4.5 KW
LOW WATER HEATER PROTECTION
INCLUDED
WEIGHT CAPACITY
1000 LB
OVERHEAT PROTECTION
INCLUDED
RESERVOIR CAPACITY (GALLONS)
45
AUTO FILL
N/a
OUTSIDE DIMENSIONS H x W x D
49” x 40” x 32”
VOLTAGE
208V-230V
SHIPPING WEIGHT
500
PHASE
1
CLEANING CAPACITY
DIAMETER 26”
HEIGHT 31”
DIAGONAL 40”
AMPS
41
DOWNLOAD IC-4 USER GUIDE
Get the IC-4 user guide to learn safe operation, cleaning cycle setup, and daily maintenance practices.
