IC-10
The Insta-Clean IC-10 delivers powerful hot-water spray cleaning for larger and heavier components. Built for busy automotive and industrial shops, the IC-10 combines a roll-out parts tray, integrated oil skimmer, and full 360° spray coverage to clean heavily contaminated parts quickly and safely.
IC-10 PRODUCT OVERVIEW

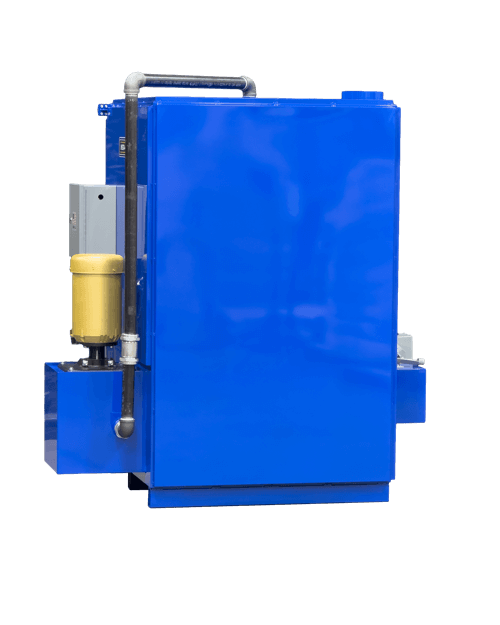

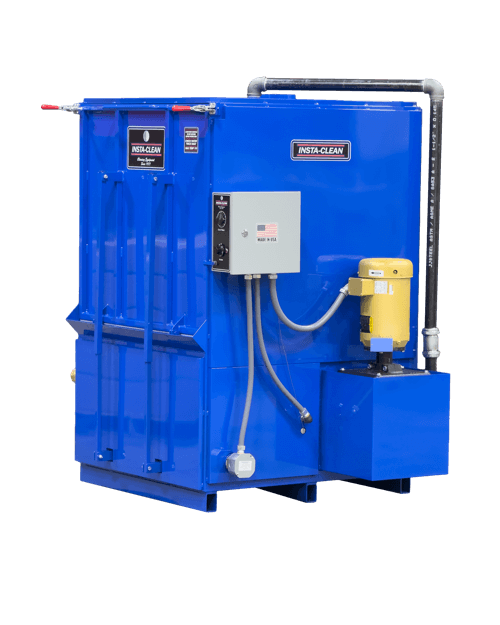

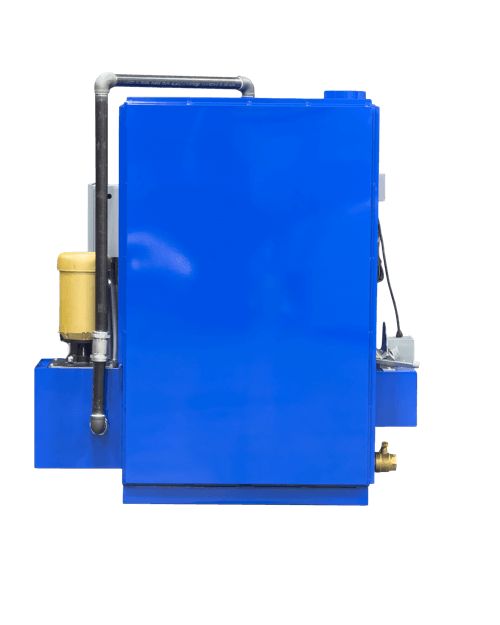

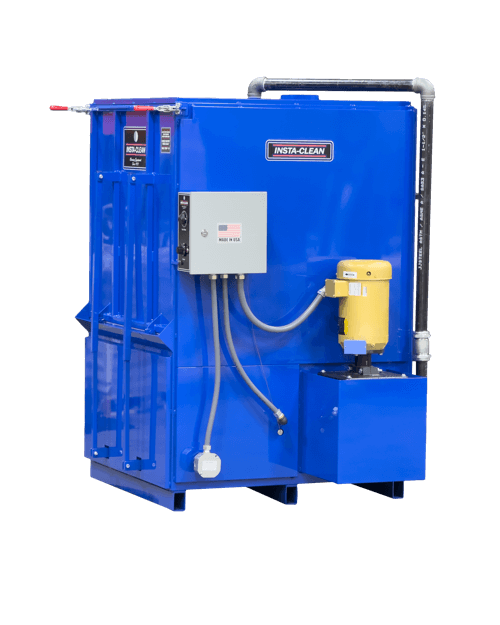

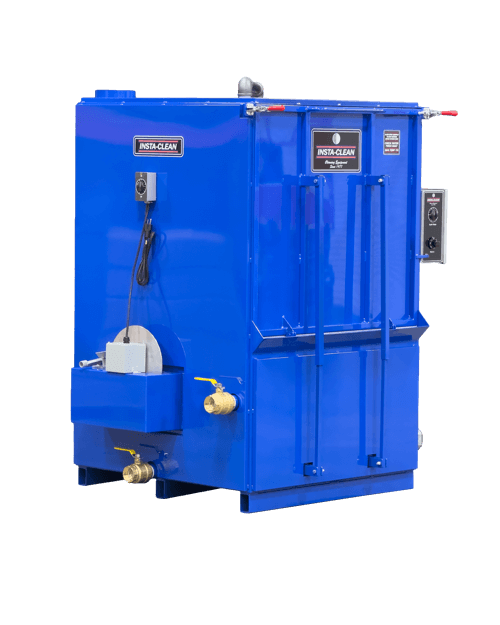

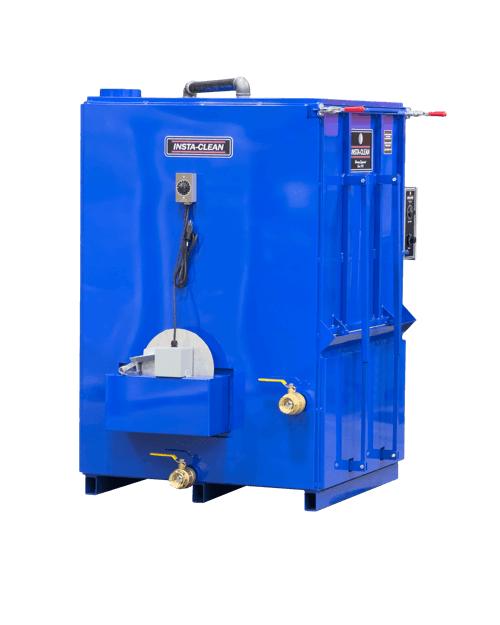

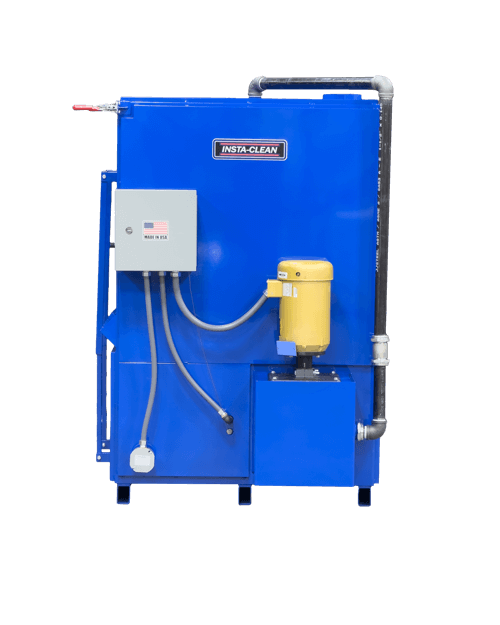

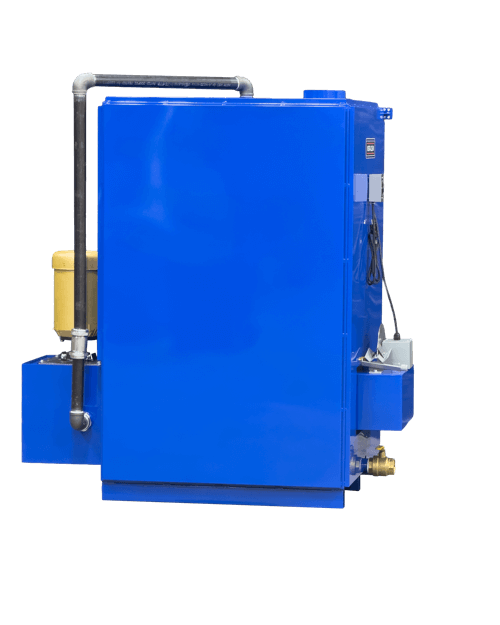

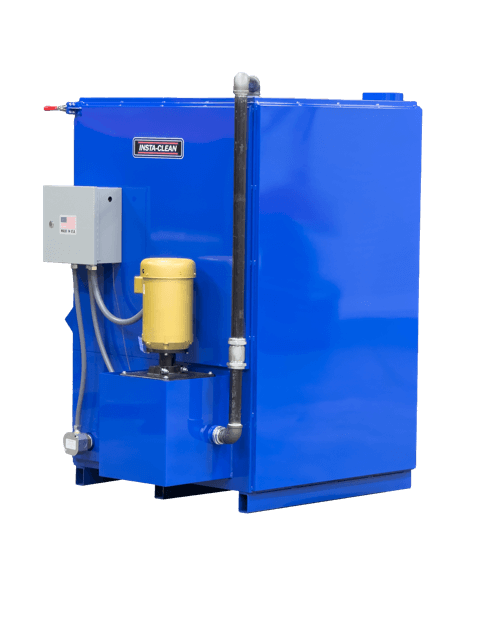

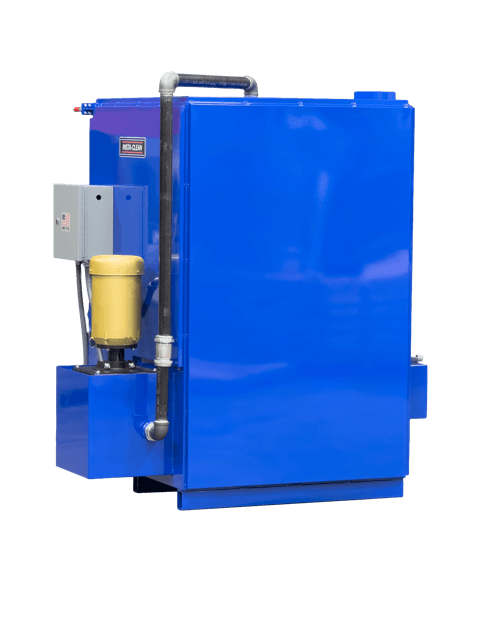

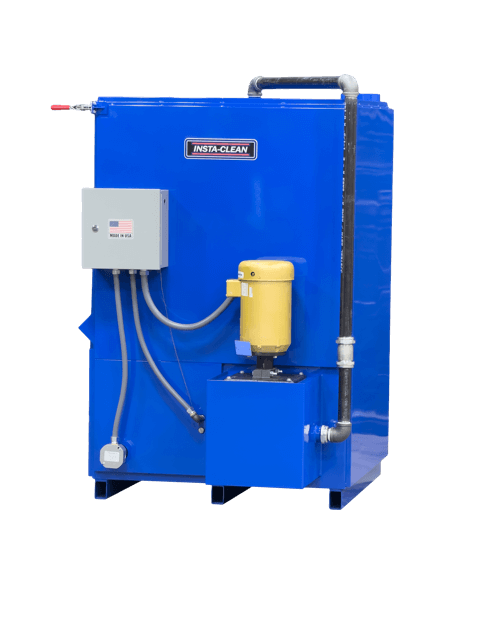

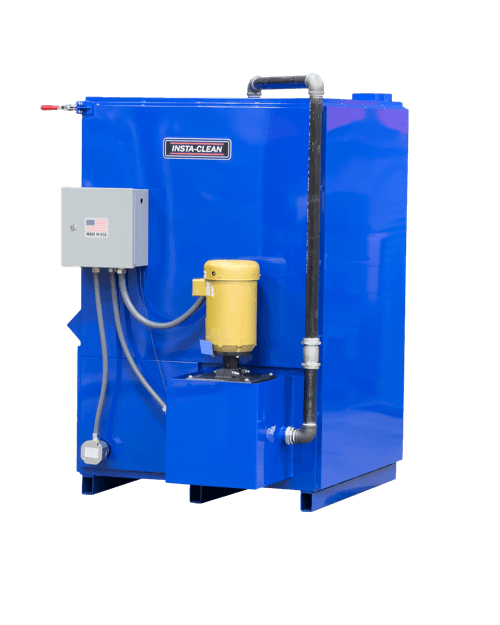

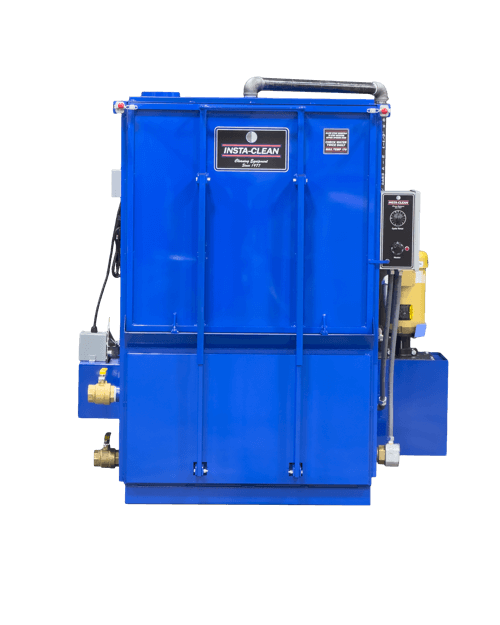

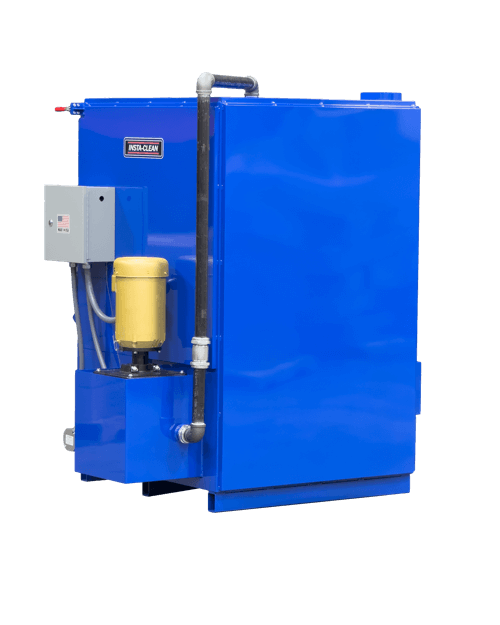

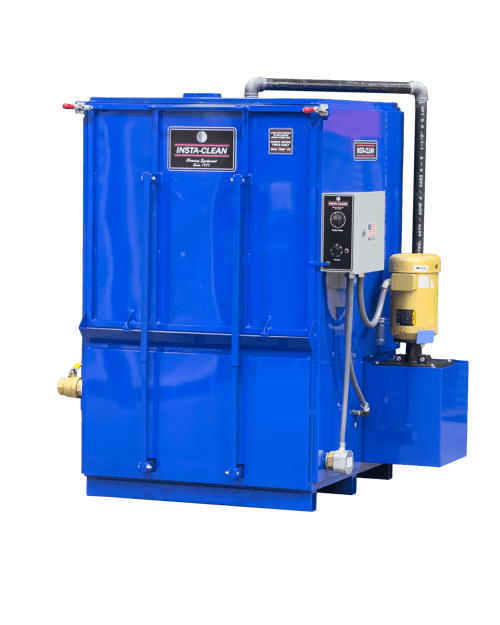

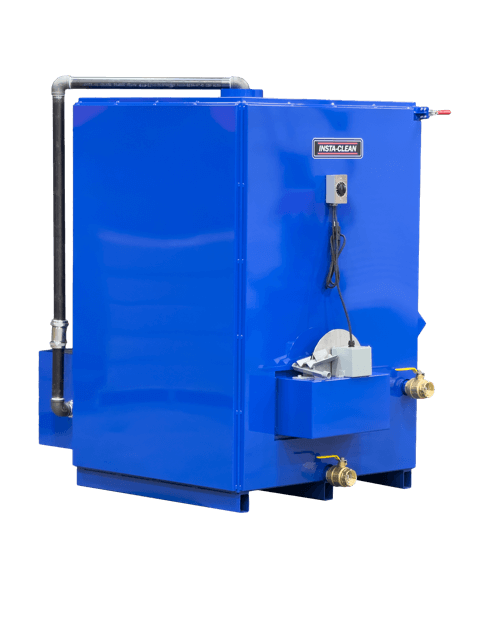

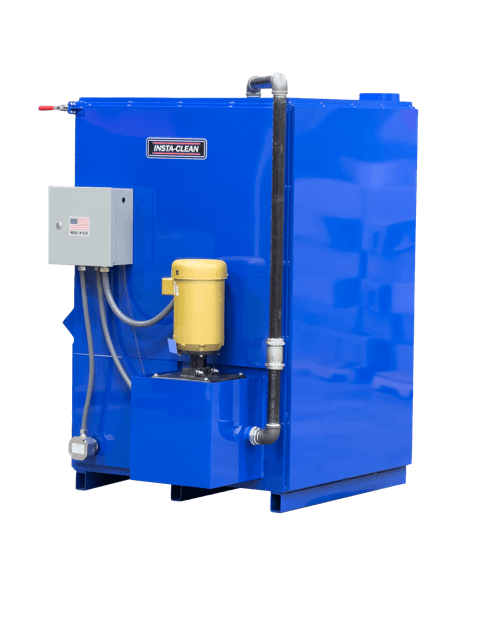

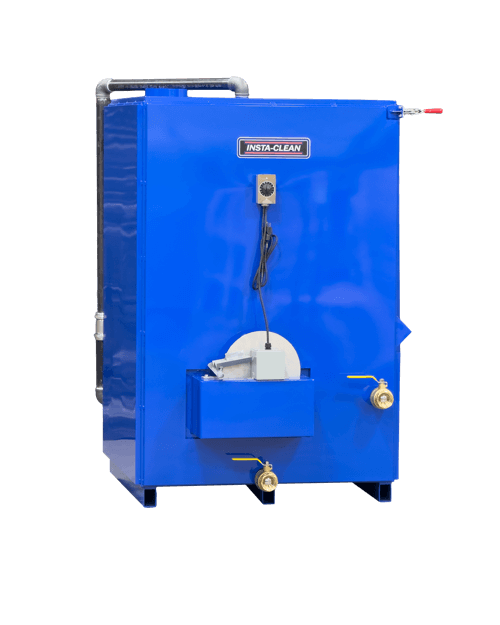

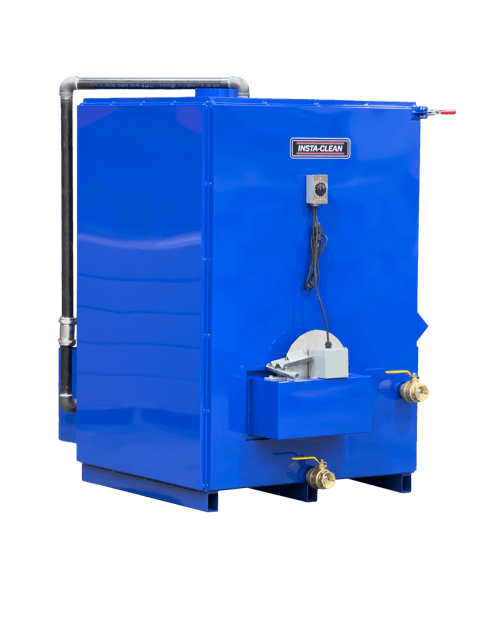

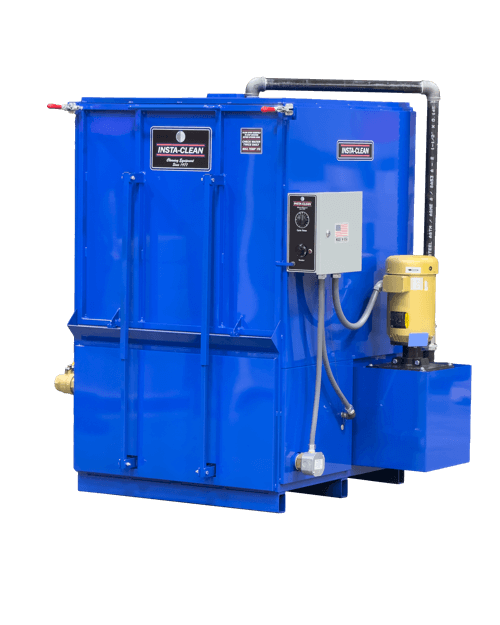

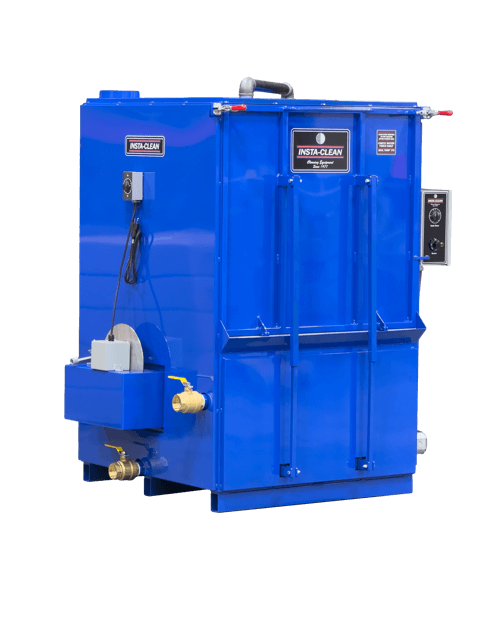

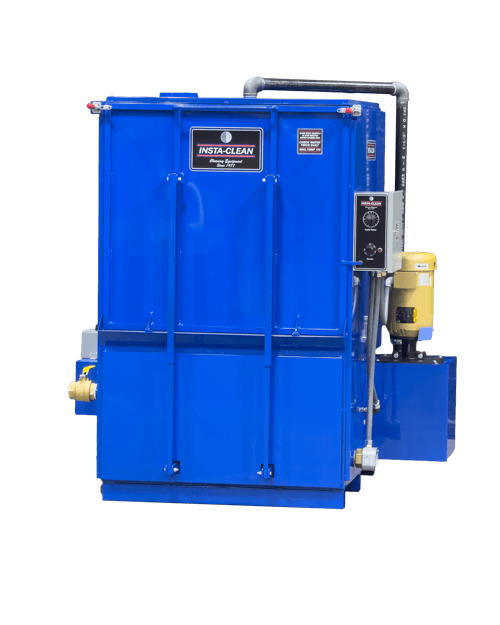

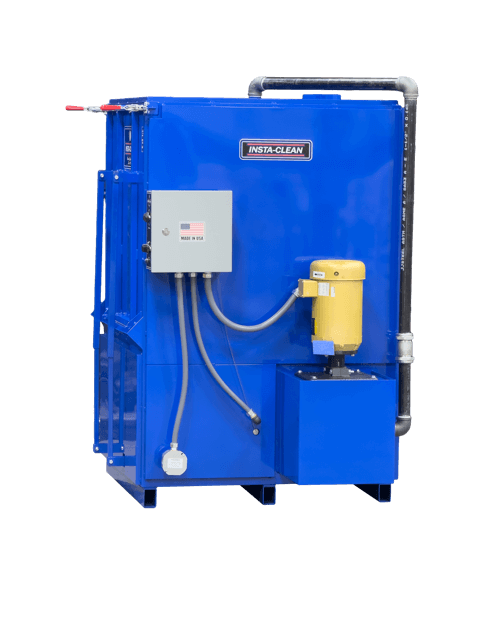

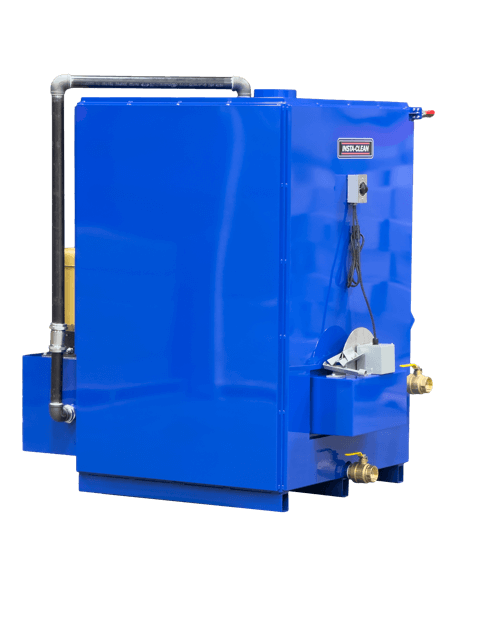

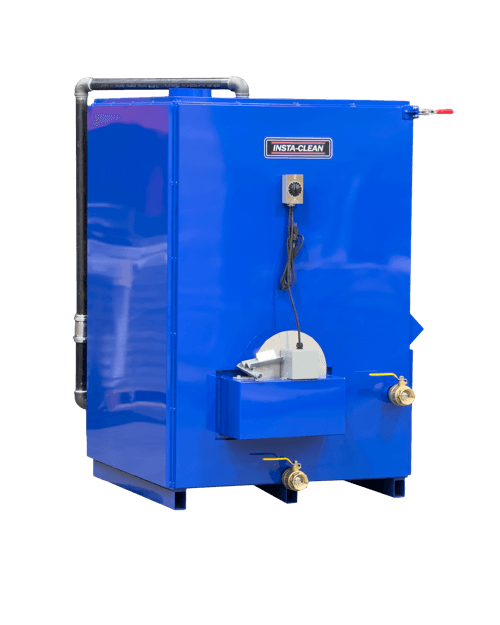

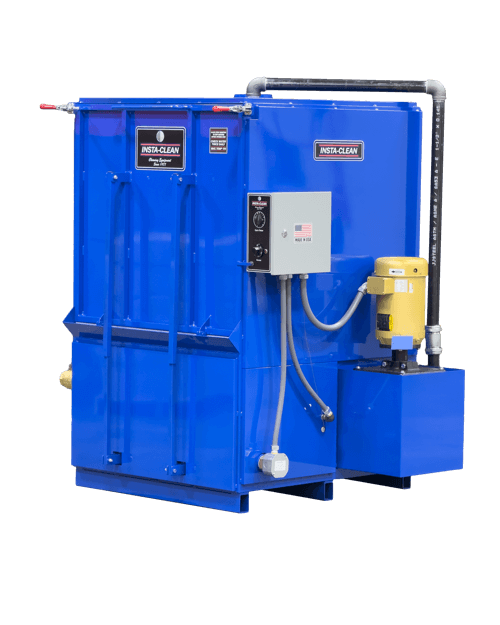

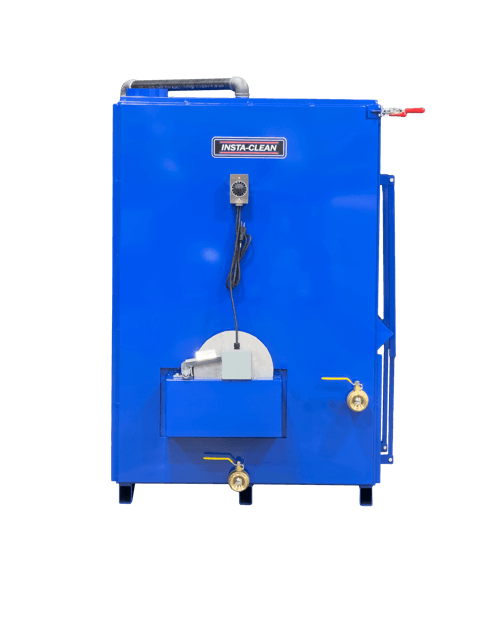

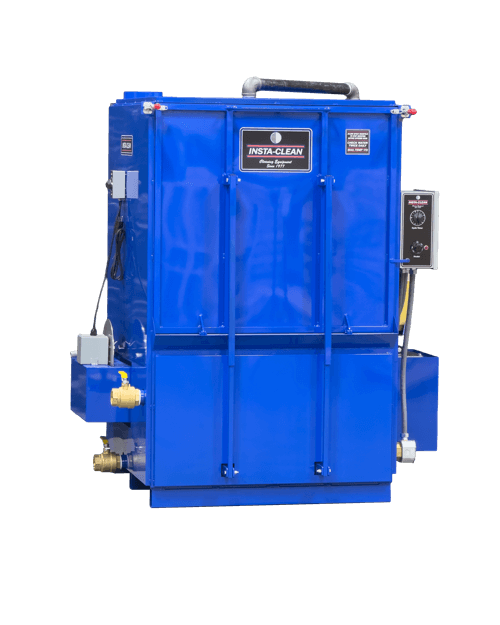

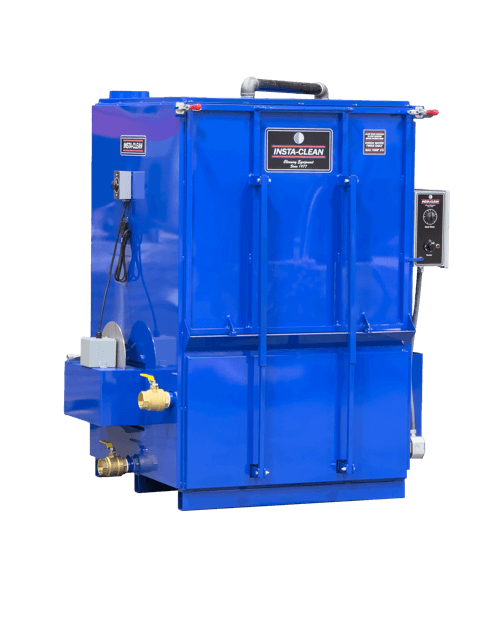

Carbon steel front-load parts washer. Designed for the automotive repair industry to clean oily, greasy, and heavily soiled parts. The parts tray rolls out onto the door when open for easy loading and unloading of parts. Ideal for transmission and engine rebuilders or general automotive parts cleaning needs. Quality 12-gauge construction, with a durable polyurethane coating and thermal insulation, is standard. 220V three phase is standard, 480V and gas heat are optional.
IC-10 WALKTHROUGH
This video provides an overview of the IC-10 automatic parts washer and how it operates within a typical shop environment. Watching the video helps users become familiar with the machine’s purpose and general workflow before beginning regular use.
PRODUCT TECH SPECS
12 GAUGE CABINET CONSTRUCTION
CARBON STEEL
THERMAL INSULATION
INCLUDED
PUMP HP
5 HP (SEAL-LESS)

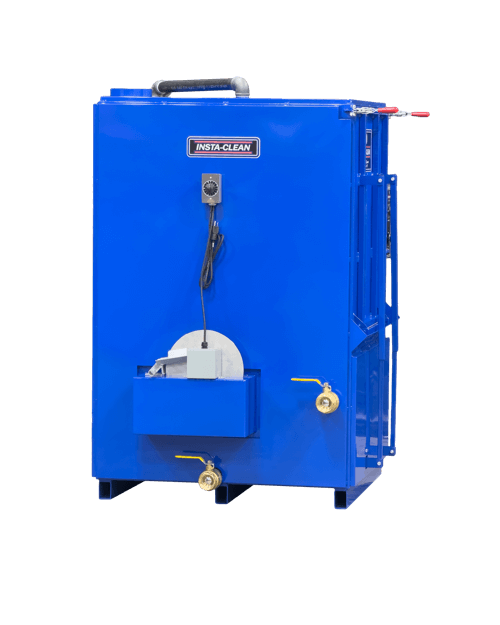

OIL SKIMMER
INCLUDED
HEATER
12 KW OR 130,000 BTU GAS
LOW WATER HEATER PROTECTION
INCLUDED
WEIGHT CAPACITY
1000 LB
OVERHEAT PROTECTION
N/A
RESERVOIR CAPACITY (GALLONS)
120
AUTO FILL
N/a
OUTSIDE DIMENSIONS H x W x D
62” x 62” x 47”
VOLTAGE
208V-230V
480V OPTIONAL
SHIPPING WEIGHT
1200
PHASE
3
CLEANING CAPACITY
DIAMETER 34”
HEIGHT 28”
DIAGONAL 44”
AMPS
40 (14-GAS)
DOWNLOAD IC-10 USER GUIDE
Download the IC-10 user guide for setup instructions, operating procedures, and routine maintenance to keep your washer running efficiently.
